Week 2¶
This week I used an Adafruit microcontroller to monitor soil conditions by measuring time, light levels, temperature, and moisture. The sensor was continuously collecting data from the connected nail and automatically logged the readings into a spreadsheet for easy tracking and analysis.
Measurement¶
I measured soil moisture levels to see if plants needed watering by observing:
Light Intensity
Temperature
Time (relative to the power board)
Touch sensor conductivity from the nail probe
Devices and Platform¶
- Microcontroller: Adafruit Circuit Playground Express
- Communication Platform: USB connection to a laptop; data logged into a Google Sheets spreadsheet via MakeCode and a Python script
External Components:¶
- Alligator clip wire
- Nail (inserted into soil for moisture conduction)
- USB cable (for data and power)
Process¶
-
Gather the microcontroller (Adafruit Circuit Playground Express), alligator clips, a metal nail to act as the probe indicator, a USB cable, and a computer with MakeCode and a spreadsheet program of your choice.
-

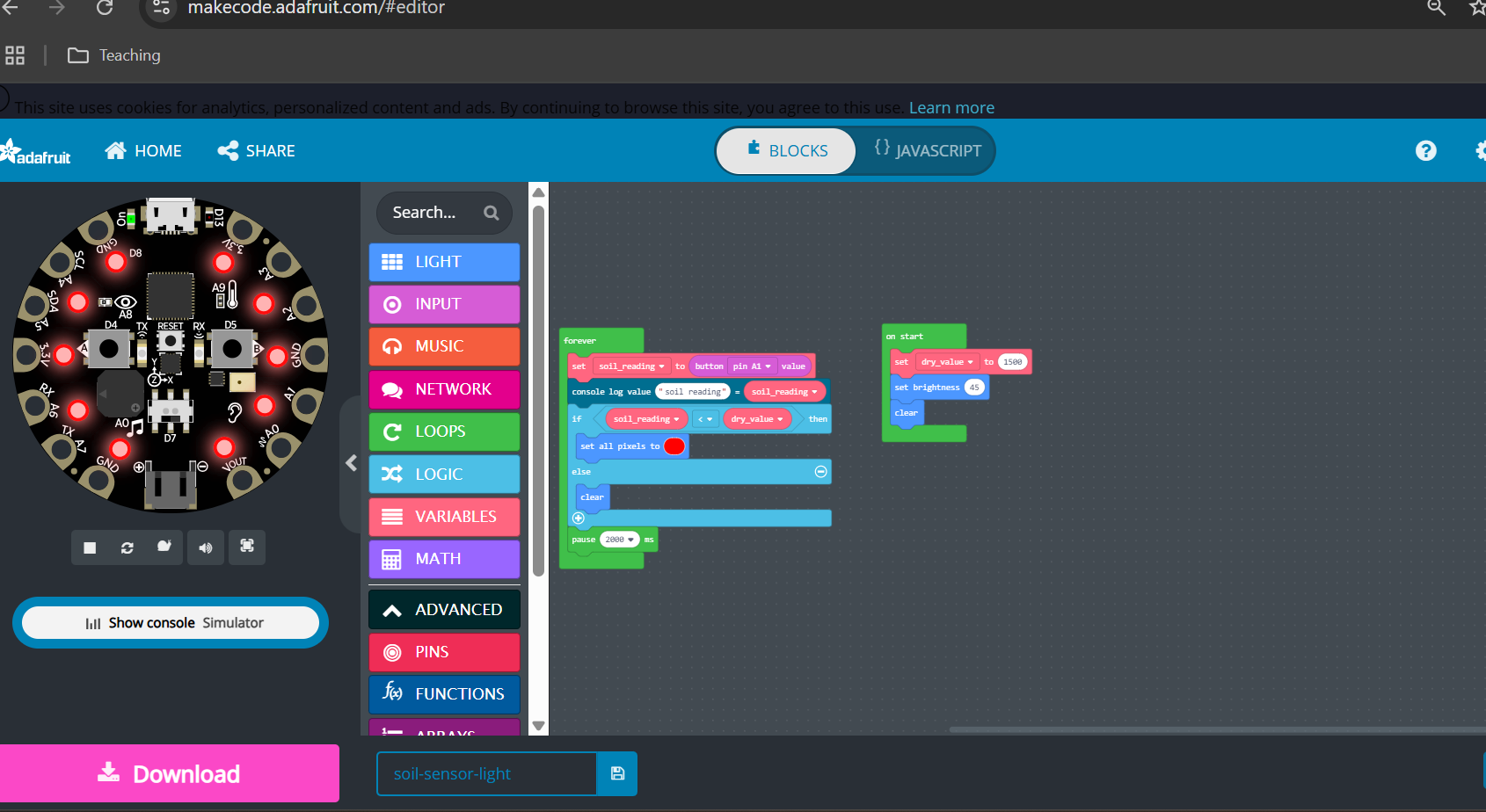

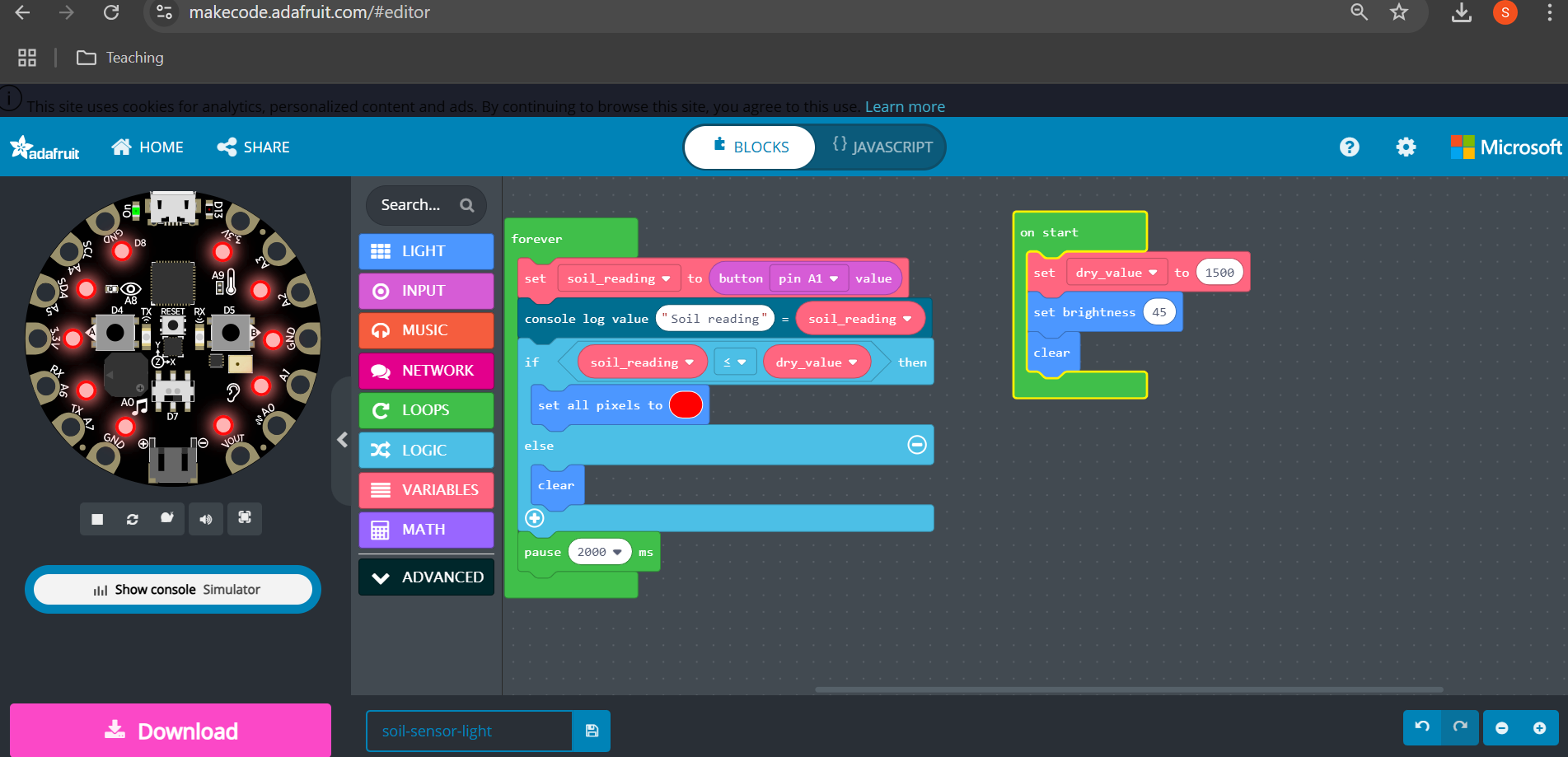

Program the Adafruit to use the analog read pin (I used A1) block to measure the moisture level in the soil as well as the ambient light and temperature.
-

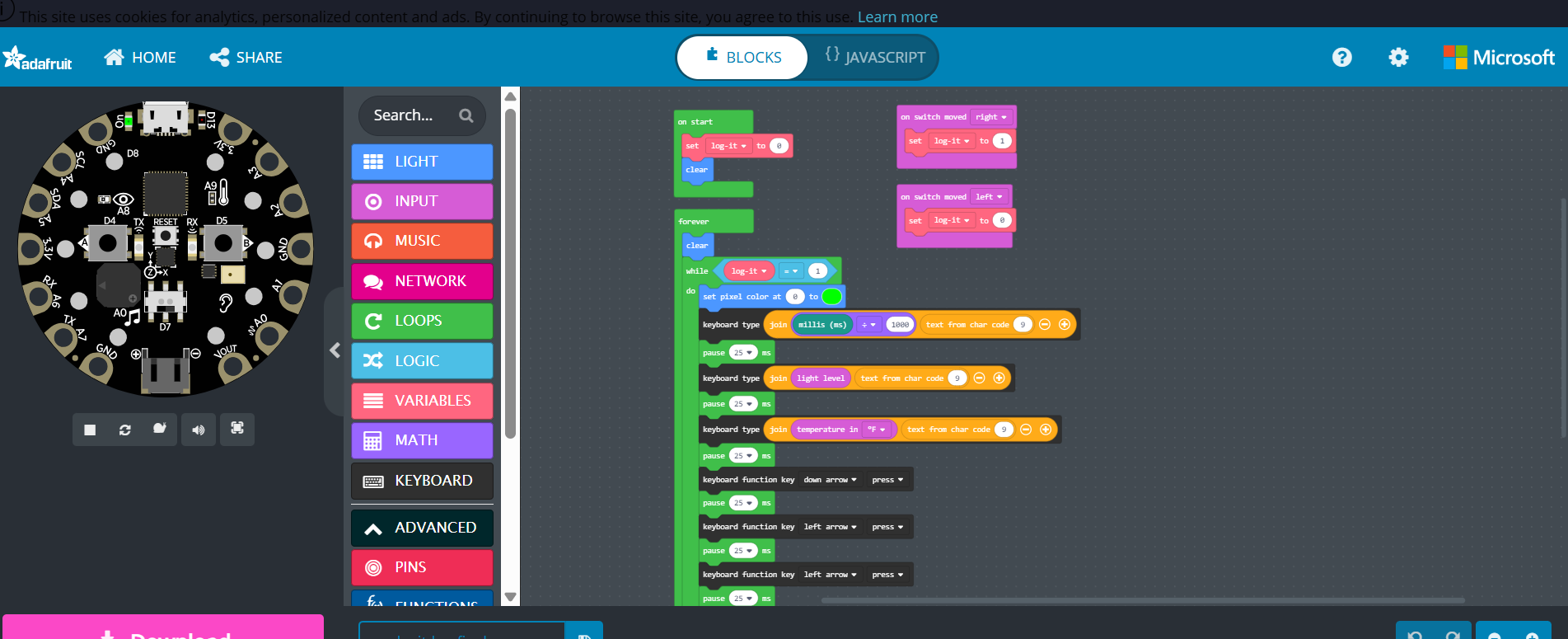

Create the logging code to send the recorded data for each measurement through the USB connection.
-

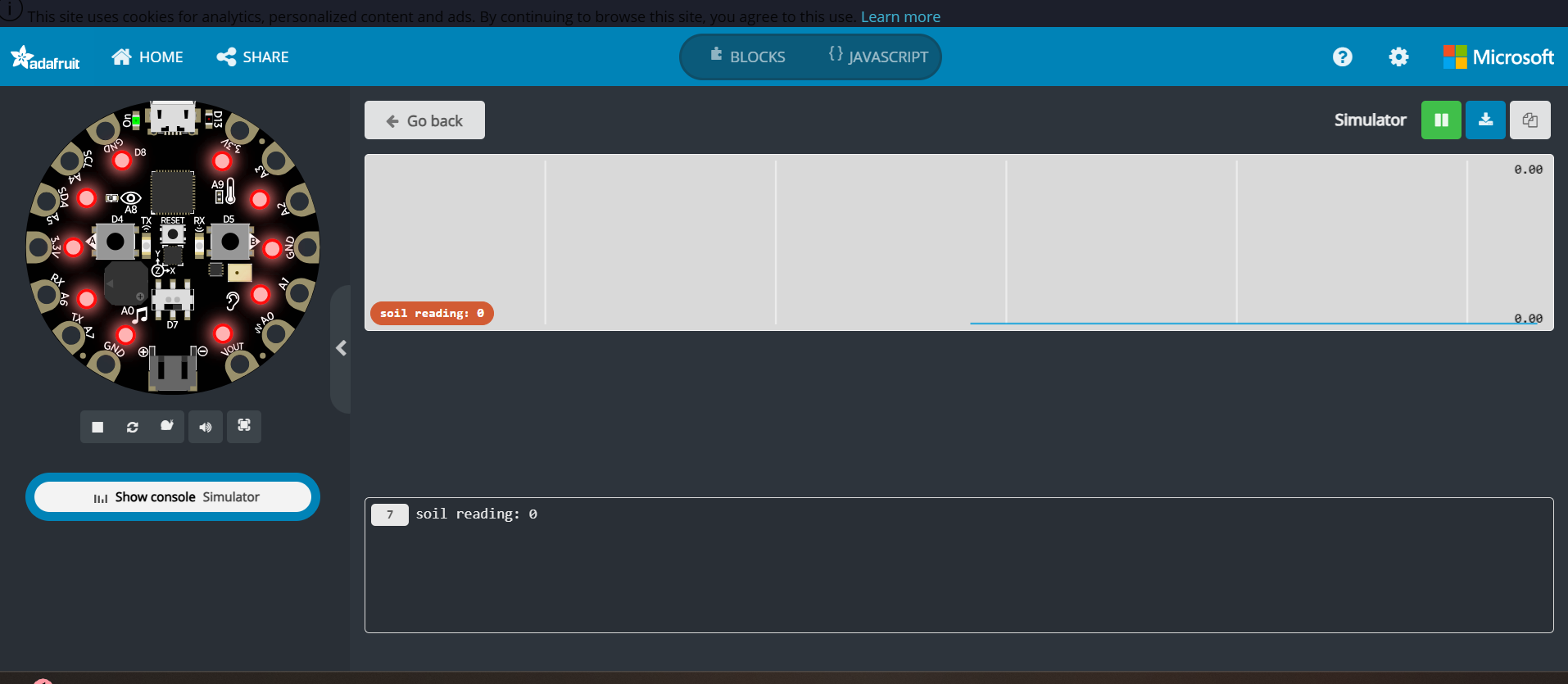

Connect to Spreadsheet by selecting the “Show Console Device” option in MakeCode to log incoming serial data automatically into a spreadsheet.
-

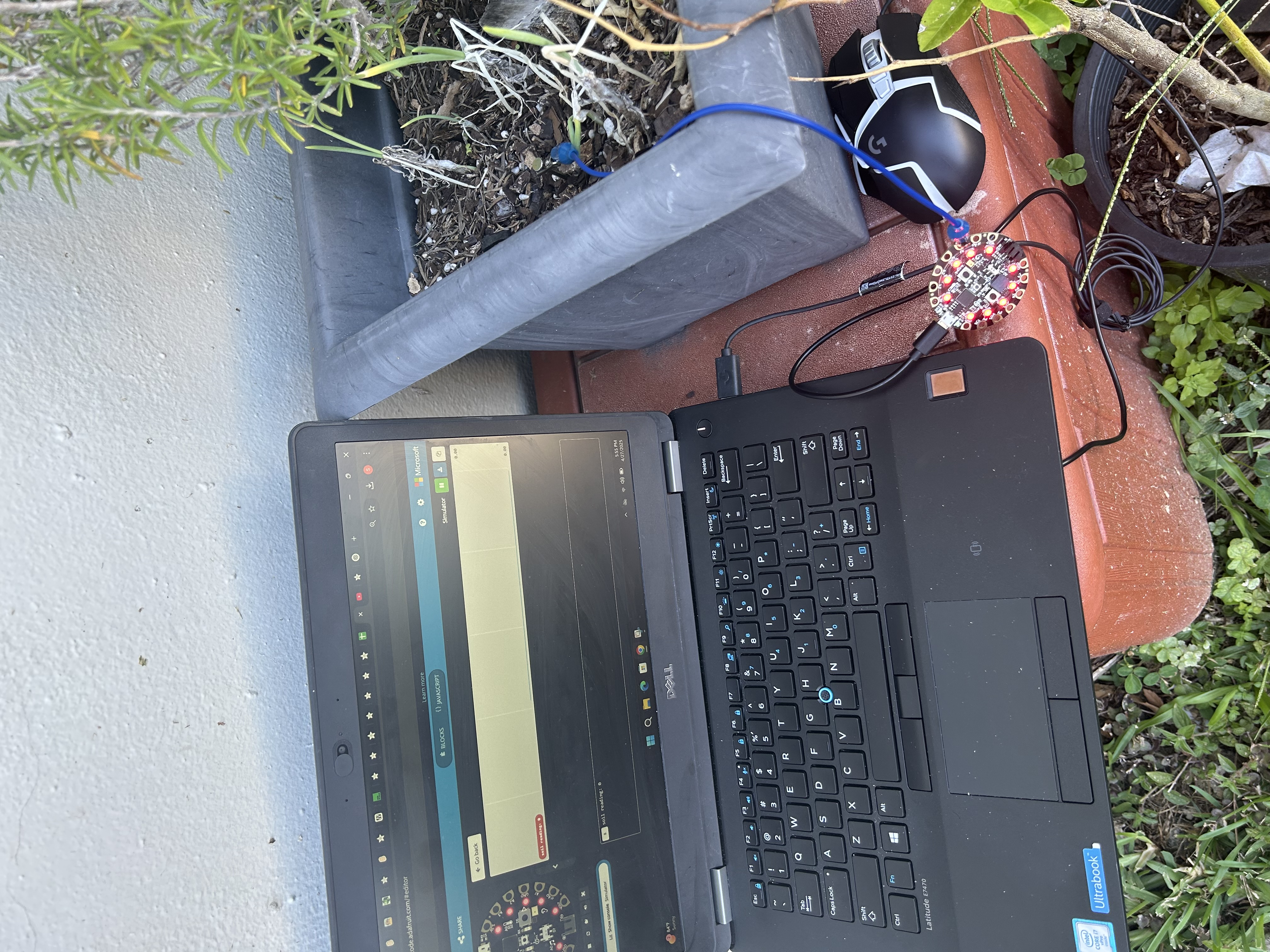

Attach one alligator clip to the corresponding read pin (A1) pad on the Adafruit board and clip the other end to a metal nail. Insert the nail into the soil you want to measure. Ensure the Adafruit is connected to the computer via USB.
-
Run the system to collect measurements over time, creating a dataset that shows how soil moisture, light, and temperature vary.
